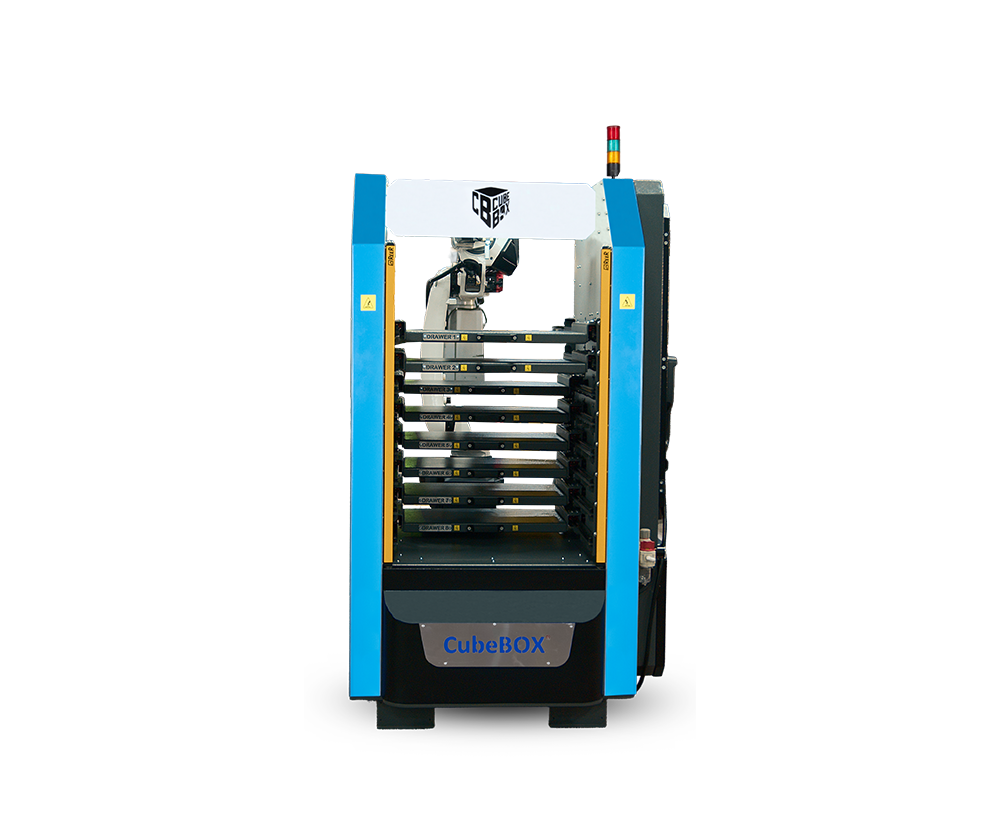

CubeBOX Blues DR MINI
CubeBOX Drawer System
Highlights
- VERSION : COMPACT V01
- Min. Diameter of the Steel Workpiece : 5 mm.
- Max. Diameter of the Steel Workpiece : 350 mm.
- Min. Side Length of the Hexagonal Steel Workpiece : 20 mm.
- Max. Side Length of the Hexagonal Steel Workpiece : 80 mm.
Specifications
- Cell Width : 1.580 mm.
- Cell Length (Depth) : 1.170 mm.
- Cell Higth / Fence Hight : 1.930 mm.
- Standard Cell Total Weigth (without robot) : 1.150 Kg.
- Supply Voltage : Mono-phase 220 V AC
- Air Consumption : <80 L/Min.
- VERSION : COMPACT V01
- Min. Diameter of the Steel Workpiece : 5 mm.
- Max. Diameter of the Steel Workpiece : 350 mm.
- Min. Side Length of the Hexagonal Steel Workpiece : 20 mm.
- Max. Side Length of the Hexagonal Steel Workpiece : 80 mm.
- Max. Height of the Steel Workpiece : 80-100 mm.
